Summary

Create your pancakes with code!



This lesson introduces you to the concepts behind CNC Computer language called G-Code and walks you through a step by step introduction on creating your own computer generated pancake designs with your PancakeBot.



Outcomes/Objectives

Use G-Code to learn how to control PancakeBot and use the coordinate plane to create horizontal or vertical lines in G-code.



Lesson Overview

In this lesson, students will relate their earlier work with the coordinate plane to the PancakeBot. The teacher will demonstrate, using this exciting technology, a real-world application of this math skill. The teacher will show students how to use G-code to communicate with PancakeBot to print out horizontal or vertical lines on the machine’s coordinate plane.



After understanding the basic commands needed for printing out a horizontal or vertical line on PancakeBot, students will work in pairs to write the code. The teacher and/or other adults will circulate among pairs to give real time, constructive feedback on whether their code will work.



Students can then assess each other’s code, making any changes as needed. Once they are happy with their work, they can use PancakeBot one pair at a time to enter their code.



When all students have had a chance to enter their code, they can approach the PancakeBot one pair at a time to test out their code. Teacher or other adults in the room will assist with turning the machine on and off, filling the machine with pancake batter, clean up, etc. Each pair of students will create two lines using their code, so that they can eat the results afterwards.



At the end of the lesson, students will complete a short assessment, the Sample Coding Scenario sheet, that presents them with the following question: If Student X wrote the following code for PancakeBot, would it produce a horizontal line? Why or why not?

What You'll Need

Teacher: Laptop, LCD projector, big G-code chart, PancakeBot, premixed batter, towels, forks and plates.



Students: 1 laptop per pair, G-code sheet, Sample Coding Scenario sheet, plates, forks, and assessments.



Grouping Strategy: Students can be paired according to their comfort level with the coordinate plane, their comfort level with technology, or their comfort level with programming languages. Goal-oriented students with greater stamina or a greater ability to try new challenges can be paired with students that need more support and encouragement. If all students are close in ability, pairing them according to stamina and readiness for challenge may be a good strategy.



Academic Vocabulary:

Programming language

G-Code

Zeroing

Extrusion

Polygon

Pressure

Vacuum Pressure

Calibration

Feed Rate

Standard

CNC



SAFETY FIRST

When operating the PancakeBot, there are few precautions one must take.

  1. Keep lose hair or clothes away from the belts while the PancakeBot is moving. The belts and motors are low powered but may pinch fingers during movement if caught between the belt and the drive motors.
  2. Always assume the griddle is hot. The griddle will remain hot even after it is unplugged and turned off.
  3. Take care when removing the thermostat heating probe. The metal probe should always assumed to be hot.
  4. Always unplug the electric cord from the power outlet after use.
  5. The griddle may warp slightly during extended usage. Drop the temperature down on the thermostat should this occur.
  6. The griddles for PancakeBot are voltage specific and there are different voltages for US(110V) and EU(220V) approved Griddles. Check the bottom of the griddle to make sure you are using the right voltage.
  7. Always assume a risk of fire when using any cooking appliance. Discuss any fire risks with the appropriate safety personnel.
  8. Check the temperatures of the pancakes to insure they are safe before eating them. Steam may get trapped inside air pockets in the batter.



The Instructions

Introducing to GCode Commands

Become familiar with PancakeBot's G-code commands and a G-code file.

G-code Commands

PancakeBot is a CNC machine which uses basic commands to move the bottle to different places on the griddle, and drop pancake batter.

The commands are written in a programming language called G-Code that tells a machine how it should make a pancake.



Here is a list of the commands that commands that PancakeBot uses.





Typical G-Code File Setup

When creating a G-Code file, you simply use a text editor and change the extension of the file from .txt to .gcode. You will neet to set up your settings on your computer to see file extensions if you cannot see them.

You can add comments after the semicolon after any command.

For Example, if you want to make a comment after the G-Code command to turn the motors off, you write the following:

M84; Turn Movement Motors Off



You can also just add a semicolon and a comment afterwards.



A newline is a new command.



Task 1:

Write the G-code command to create a line from the following points:

10,15 to 30,40



Task 2: Write the G-code command to set the speed to 5.4 meters per minute

Task 3: Write the G-code command to turn the batter pump on, and then add a the comment “Batter is flowing!”

Square Pancake: Setup

It is time to code and draw your first pancake. You'll set up the coordinates, and print out your pancake. You'll aslo get an opportunity to review your design and make changes to it.

  • Open up a new text file and save it with the name BigSquare with the extension “.gcode” – BigSquare.gcode
  • Add the following starter parameters to the file by either copying or pasting them into your file.

*******

;Set Up My PancakeBot

G21; Set Units to MM

G1 F7600; Set Speed to 7600 mm per minute

M107; Turn Batter Dispenser off to stop batter flow

G28; Home All Axis



;Making My Pancake





;Finish Printing

G28 X0 Y0; Home all axis

M84; Turn Movement Motors Off

*******

  • Leave several spaces after the “Home All Axis” and the “Making My Pancake Comment”



Once the file is set up, we can now begin looking at how we will draw our square pancake.

Note that this setup can be used for al types of pancakes!



Square Pancake: Getting your movement coordinates

In this step you'll make a drawing on graph paper, and use that drawing as a reference for your square pancake. The PancakeBot uses mm as its unit of measurement, but your graph paper does not have to be in mm, you just have to be consistent with your numbers.

When you look at the griddle of the pancakebot, you will need to imagine that there is a grid made up of one by one mm squares. There are 220 squares along the short side of the PancakeBot griddle, and 485 squares on the long side of the PancakeBot griddle, this means we have an area of 220mm x 485 mm. In Figure 1, we shows squares every 10 mm (not to scale).

For your first pancake, you’ll only need to go out at least 150 mm. You can set up your graph paper to have as many mm per square as you want based on the scale of your drawing. In Figure 2, each square is 10mm X 10mm

This grid shows a square with the following coordinates

(30,30)

(130,30)

(130,130)

(30,130)



Notice that the points aren’t in any order, so you could start drawing your pancake from any point. For this example, we will start at (30,30) and move in a counterclockwise fashion. Use Figure 3 as a referance.





Next, we need to take these coordinates and write them into the G-Code so PancakBot can understand what to do.



We’ll go ahead and start off with 30,30 as our first point and work our way around.



G00 X30 Y30; Move bottle to coordinates (30,30)

G00 X130 Y30; Move bottle to coordinates (130,30)

G00 X130 Y130; Move bottle to coordinates (130,130)

G00 X30 Y130; Move bottle to coordinates (30,130)

G00 X30 Y30; Move bottle to coordinates (30,30)



Figure 4 shows how the G-Code and Coordinates relate to one another.



These are the G-Code Commands we will be using to tell the PancakeBot to move from one spot to another.

Square Pancake: Putting it all together

We'll take the previous steps and wrap it all together to print our first Pancake.

Copy the G-Code commands from the previous two steps to complete your square file.

It should look something like this.

**********

;Set Up My PancakeBot

G21; Set Units to MM

G1 F7600; Set Speed to 7600 mm per minute

M107; Turn Batter Dispenser off to stop batter flow

G28; Home All Axis



G00 X30 Y30; Move bottle to coordinates (30,30)

G00 X130 Y30; Move bottle to coordinates (130,30)

G00 X130 Y130; Move bottle to coordinates (130,130)

G00 X30 Y130; Move bottle to coordinates (30,130)

G00 X30 Y30; Move bottle to coordinates (30,30)



;Finish Printing

G28 X0 Y0; Home all axis

M84; Turn Movement Motors Off

********



Test Your Code

Take your file and save it to the SD Card. Try running the pancakebot without any batter and see if your code works.



Once you tested it, and the PancakeBot moved in a square, you need to tell the PancakeBot to turn on the Pancake Bottle Dispenser.



We use the M106 & M107 commands to start the batter pouring.



**********

;Set Up My PancakeBot

G21; Set Units to MM

G1 F7600; Set Speed to 7600 mm per minute

M107; Turn Batter Dispenser off to stop batter flow

G28; Home All Axis



M106; Turn Batter Dispenser On to start batter flow

G00 X30 Y30; Move bottle to coordinates (30,30)

G00 X130 Y30; Move bottle to coordinates (130,30)

G00 X130 Y130; Move bottle to coordinates (130,130)

G00 X30 Y130; Move bottle to coordinates (30,130)

G00 X30 Y30; Move bottle to coordinates (30,30)

M107; Turn Batter Dispenser off to stop batter flow



;Finish Printing

G28 X0 Y0; Home all axis

M84; Turn Movement Motors Off

********



Now that your batter control is started, give your file a test run with PancakeBot and test out your print.



Tuning your PancakeBot with Time

In this final step we talk about timing is everything with the PancakeBot, and how you need to use timing, to get different results.

First Consideration: Mind The Gap

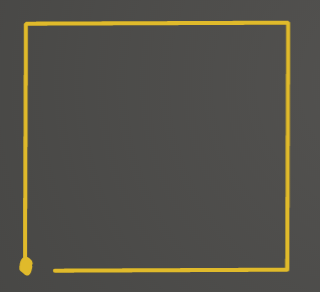

After your first test print, did you notice something strange about your square pancake? It probably looked like this.





But why?



Well, let’s look at what is happening. You have a gap at the beginning of the line, and a blob on the end. When you start off your square, you turn the batter bottle on, and instantly start moving the head of the PancakeBot.



Since batter can be thick or thin, the batter may not start flowing instantly, so if the head is moving, you will get a space on the griddle between the time the head starts moving, and when the batter hits the griddle.



To avoid that, you can start the batter flow, and use the pause command to give the batter time to hit the griddle.



Look back at the first code, and look for the pause command.



The G4 command pauses the movement of the machine for a specified time.

The time you specify depends on how thick the batter is.

A good rule of thumb is that thin batter, needs about .5 seconds to get to the griddle if the bottle is in the lowest notch, and thick batter, can need about 1.35 seconds to get to the griddle if the bottle is in the lowest notch.



You can change the pause time as you see fit, but go ahead and place it in between the start of the bottle and the first movement.



**********

;Set Up My PancakeBot

G21; Set Units to MM

G1 F7600; Set Speed to 7600 mm per minute

M107; Turn Batter Dispenser off to stop batter flow

G28; Home All Axis



M106; Turn Batter Dispenser On to start batter flow

G4 P750; Pause the machine for 750 milliseconds (¾ of a second). This allows the batter to drop down to the griddle.

G00 X30 Y30; Move bottle to coordinates (30,30)

G00 X130 Y30; Move bottle to coordinates (130,30)

G00 X130 Y130; Move bottle to coordinates (130,130)

G00 X30 Y130; Move bottle to coordinates (30,130)

G00 X30 Y30; Move bottle to coordinates (30,30)

M107; Turn Batter Dispenser off to stop batter flow

G4 P750; Pause the machine for 750 milliseconds (¾ of a second).





;Finish Printing

G28 X0 Y0; Home all axis

M84; Turn Movement Motors Off

********



Last consideration: The Blob

Run your print one more time and see how it looks.



Here is an image of the anticipated results based on our last change.
